Focus · Gravel

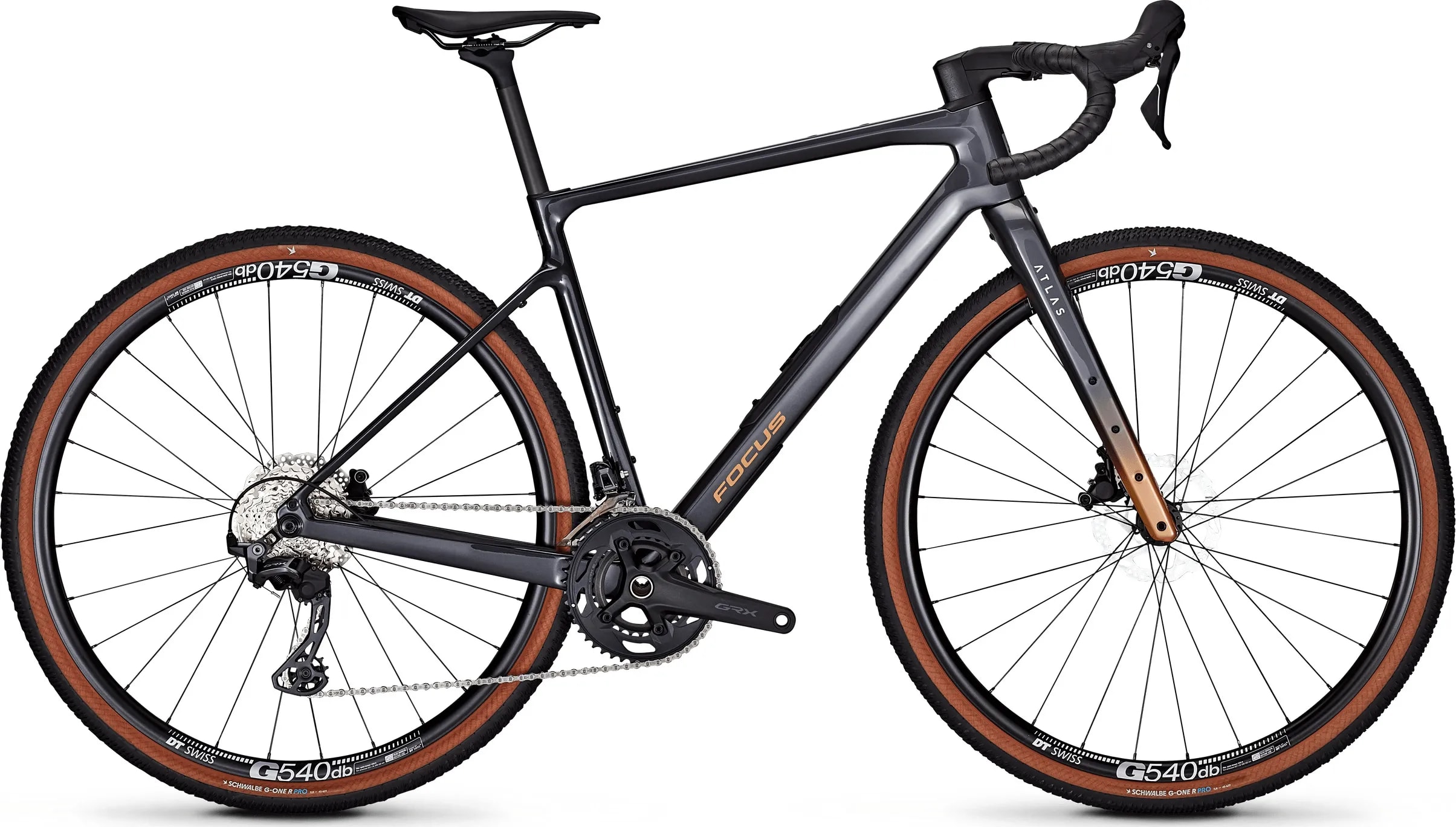

Focus Atlas 8.7
ATLAS 8.7 Features Carbon frame with Prep Pocket including Prep Pack Shimano GRX 820 2×12 shifting DT Swiss G540 rims with Alexrims hubs
- Sizes
- Contact the shop for available sizes
- Colour
- Steelgrey/Diamond Black
The Focus ATLAS 8.7 is ready for gravel adventures, combining a carbon frame with practical features for longer days in the saddle. Integrated Prep Pocket storage and the included Prep Pack keep ride essentials neatly tucked inside the frame, while Shimano GRX 820 2×12 shifting offers a versatile gear range for tackling climbs and maintaining pace on flatter roads. DT Swiss G540 rims paired with Alexrims hubs complete a dependable setup for exploring beyond the tarmac. Carbon frame and fork with extensive mounts, approved for 135kg system weight In-frame Prep Pocket storage with included Prep Pack Shimano GRX 820 2x12 drivetrain with sub-compact 46/30T crank Shimano CS-HG710 11-36T cassette DT Swiss G540 rims on Alexrims hubs, tubeless-ready Schwalbe G-One R Pro 45mm tubeless-ready tyres Shimano GRX hydraulic disc brakes Focus gravel bar with 16° flare and integrated C.I.S. cockpit
Complete build
Full specifications.
- Frame
- Carbon technology, disc, 142×12 mm thru axle, flat mount 160 mm
- Bottom bracket
- Shimano, BSA 24 mm
- Brakes front | rear
- Shimano GRX 610, Shimano GRX 610
- Cassette
- Shimano CS-HG710, 11-36T
- Chain
- Shimano CN-M6100
- Crankset
- Shimano GRX610, 46/30 T
- Disc brake rotors
- Shimano RT54, front: 180 mm (Size L-XL), 160 mm (Size XS-M) / rear: 160 mm
- Fork
- Carbon technology, disc, 100×12 mm thru axle, flat mount 160 mm
- Front derailleur
- Shimano GRX 820
- Handlebar
- Focus Gravel Bar, alloy, 31,8 mm, drop: 115 mm, reach: 70 mm, flare: 16°
- Headset
- ACROS IS52 /IS52 (ICR), FOCUS C.I.S. Integrated
- Rear derailleur
- Shimano GRX 820, 12-speed
- Front hub
- Alexrims BRD-503
- Rear hub
- Alexrims BRD-504
- Rim front
- DT Swiss G540, alloy, rim height: 20 mm, width: 24-622
- Rim rear
- DT Swiss G540, alloy, rim height: 25 mm, width: 24-622
- Saddle
- FOCUS
- Seatpost
- Carbon, 27,2 mm, set-back: 15 mm
- Shifter
- Shimano GRX 610
- Specification
- Special Features
- Specification
- Prep Pocket & Prep Pack
- Stem
- FOCUS C.I.S. 2.0 integrated, -8°, with Garmin / Wahoo-Mount
- Tyres front | rear
- Schwalbe G-One R Pro, super race, tubeless ready, 45-622, Schwalbe G-One R Pro,
- Weight
- 10kg
Interested?
