Santa Cruz · Gravel

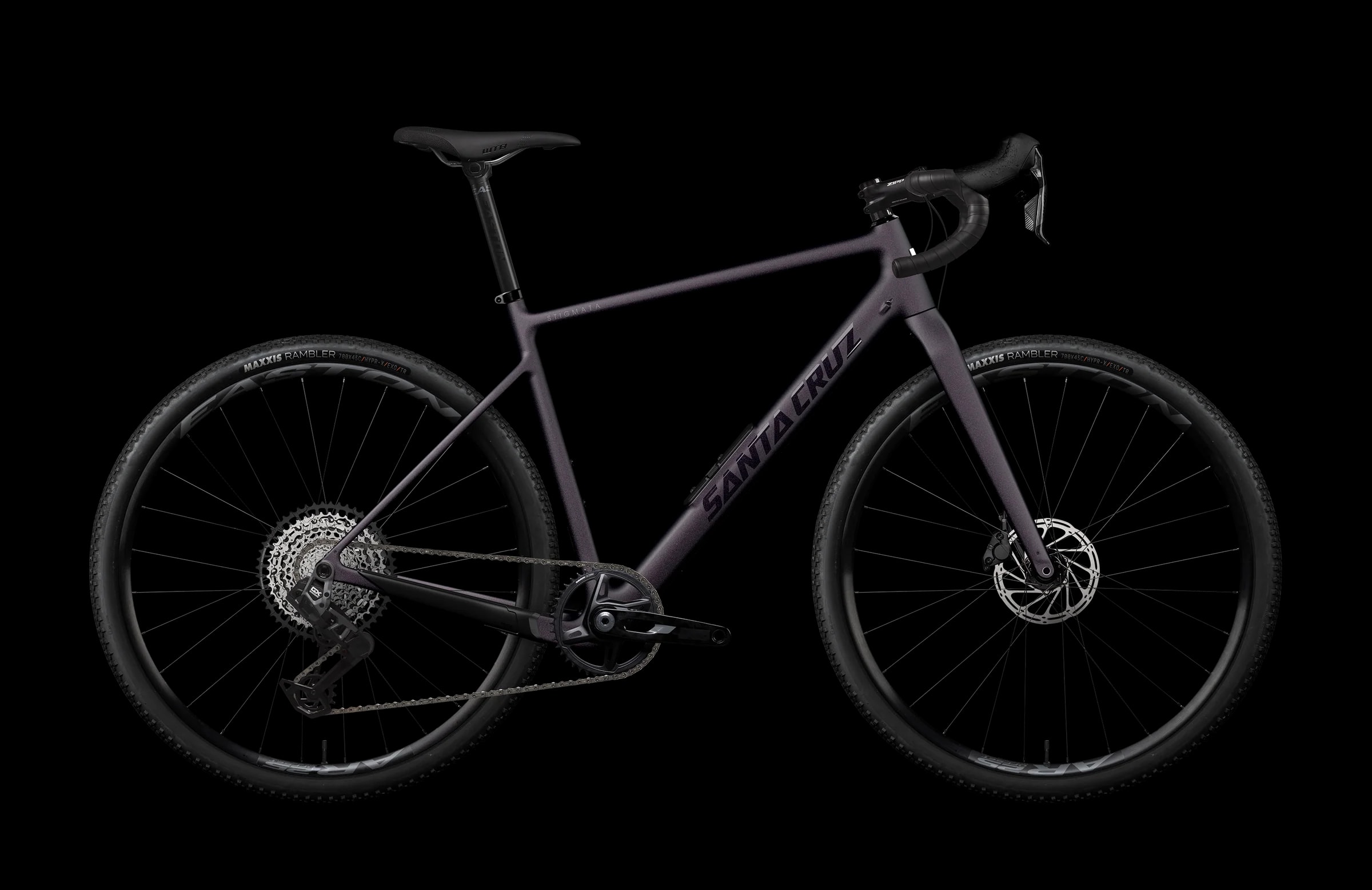

SANTA CRUZ STIGMATA RIVAL AXS
A fast and versatile CC carbon gravel bike with wireless mullet shifting, a 10–52T range and clearance for 50mm tyres.
$8,399
- Sizes
- Contact the shop for available sizes
- Colour
- Gloss Sage Luster
Fast, loose and ready for anything
The Stigmata combines race-bike speed with the confidence to take on rough gravel and drop-bar singletrack. Its CC carbon frame, SRAM Rival controls and GX Eagle Transmission drivetrain deliver a light, capable build for racing, exploring and long days off the beaten track.
Complete build
Full specifications.
- Frame
- Santa Cruz Stigmata CC Carbon Gravel
- Wheel size
- 700c
- Shifter
- SRAM Rival AXS
- Rear derailleur
- SRAM GX Eagle AXS T-Type, 12-speed
- Cassette
- SRAM GX 1275 Eagle T-Type, 10–52T
- Chain
- SRAM GX Eagle T-Type Flattop, 12-speed
- Crankset
- SRAM Rival XPLR, 42T; 165mm XS–S, 170mm M–L, 172.5mm XL–XXL
- Bottom bracket
- SRAM DUB 68mm Road Wide
- Brakes
- SRAM Rival AXS hydraulic disc
- Brake rotors
- SRAM Centerline Centerlock, 160mm front and rear
- Rims
- Race Face AR Offset 25
- Hubs
- DT Swiss 370; 12x100mm front, 12x142mm XDR rear, Centerlock, 28h
- Tyres
- Maxxis Rambler 700x45c, Hyper-X, EXO
- Maximum tyre clearance
- 50mm with 1x drivetrain / 45mm with 2x drivetrain
- Handlebar
- Zipp Service Course 70 XPLR alloy, 31.8mm; 42cm XS–S, 44cm M–L, 46cm XL–XXL
- Stem
- Zipp Service Course, 70mm
- Headset
- Cane Creek 50 IS Integrated
- Bar tape
- Velo Bar Tape
- Saddle
- WTB Silverado Medium, CroMo
- Seatpost
- Easton EC70, 27.2mm, zero offset, 350mm
- Valves
- Reserve Fillmore
- Weight
- 9.36kg / 20.64lb
