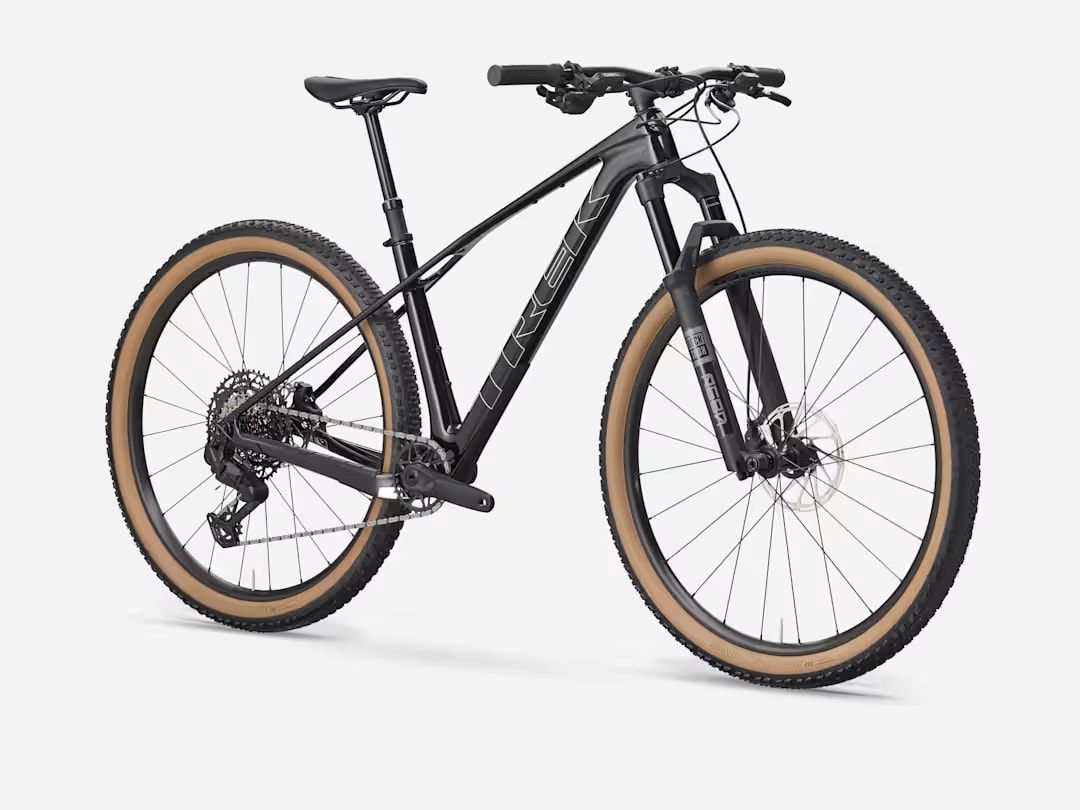

Trek Procaliber 9.6 Gen 3
Procaliber 9.6 is a race-ready cross-country hardtail built to fly. Its lightweight carbon frame delivers a smooth, efficient ride with IsoBow technology, while a 120mm RockShox Reba RL fork helps you stay fast and in control over rocks and roots. A mechanical SRAM Eagle 70 drivetrain keeps shifts crisp on punchy climbs, and 4-piston SRAM DB 6 brakes give you confident stopping power when it counts.
- Sizes
- Contact the shop for available sizes
- Colour
- DARK STAR
a race-ready carbon cross-country (XC) hardtail mountain bike built for speed and efficiency
The Trek Procaliber 9.6 Gen 3 is a race-ready carbon cross-country (XC) hardtail mountain bike built for speed and efficiency. The defining upgrade for Gen 3 is the shift to IsoBow trail-smoothing technology, a structural frame design that replaces the previous IsoSpeed decoupler to damp trail vibrations and reduce fatigue without adding the weight or complexity of full suspension
Complete build
Full specifications.
- Frame
- OCLV Mountain Carbon, IsoBow, tapered head tube, guided internal routing, rack & accessory mounts, balanced post mount brake, UDH, Boost148
- Fork
- RockShox Reba RL, DebonAir, Motion Control damper, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel
- Wheel front
- Bontrager Kovee Comp 25, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 29"
- Wheel rear
- Bontrager Kovee Comp 25, Tubeless Ready, Rapid Drive 108, Boost148, 12 mm thru axle, 29"
- Tyre
- Bontrager Sainte-Anne Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.40"
- Tyre part
- Bontrager TLR sealant, 180 ml/6 oz
- Rim strip
- Bontrager TLR
- Max tyre size
- Frame: 29x2.40"
- Shifter
- SRAM Eagle 70, 12-speed
- Rear derailleur
- SRAM Eagle 70, T-Type
- Crank
- Size: S, M, ML Sram Eagle 70, T-Type, DUB, 32T, 55 mm chainline, 170 mm length
- Size
- L, XL Sram Eagle 70, T-Type, DUB, 32T, 55 mm chainline, 175 mm length
- Bottom bracket
- SRAM DUB, 92 mm, PressFit
- Cassette
- SRAM Eagle XS-1270, T-Type,10-52, 12-speed
- Chain
- SRAM Eagle 70, T-Type, 12-speed
- Max. chainring size
- 1x: 38T
- Saddle
- Verse Short Comp, steel rails, 145 mm width
- Seatpost
- Size: S Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 31.6 mm, 310 mm length
- Size
- M, ML, L Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 31.6 mm, 410 mm length
- Size
- XL Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 31.6 mm, 450 mm length
- Handlebar
- Size: S
- Specification
- Bontrager Comp, alloy, 31.8 mm, 5 mm rise, 720 mm width
- Size
- M, ML, L, XL
- Specification
- Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width
- Headset
- Specification
- FSA IS-2, 1-1/8" top, 1.5" bottom
- Brake
- SRAM DB 6 4-piston hydraulic disc
- Weight
- M - 12.38 kg / 27.3 lbs (with TLR sealant, no tubes)
