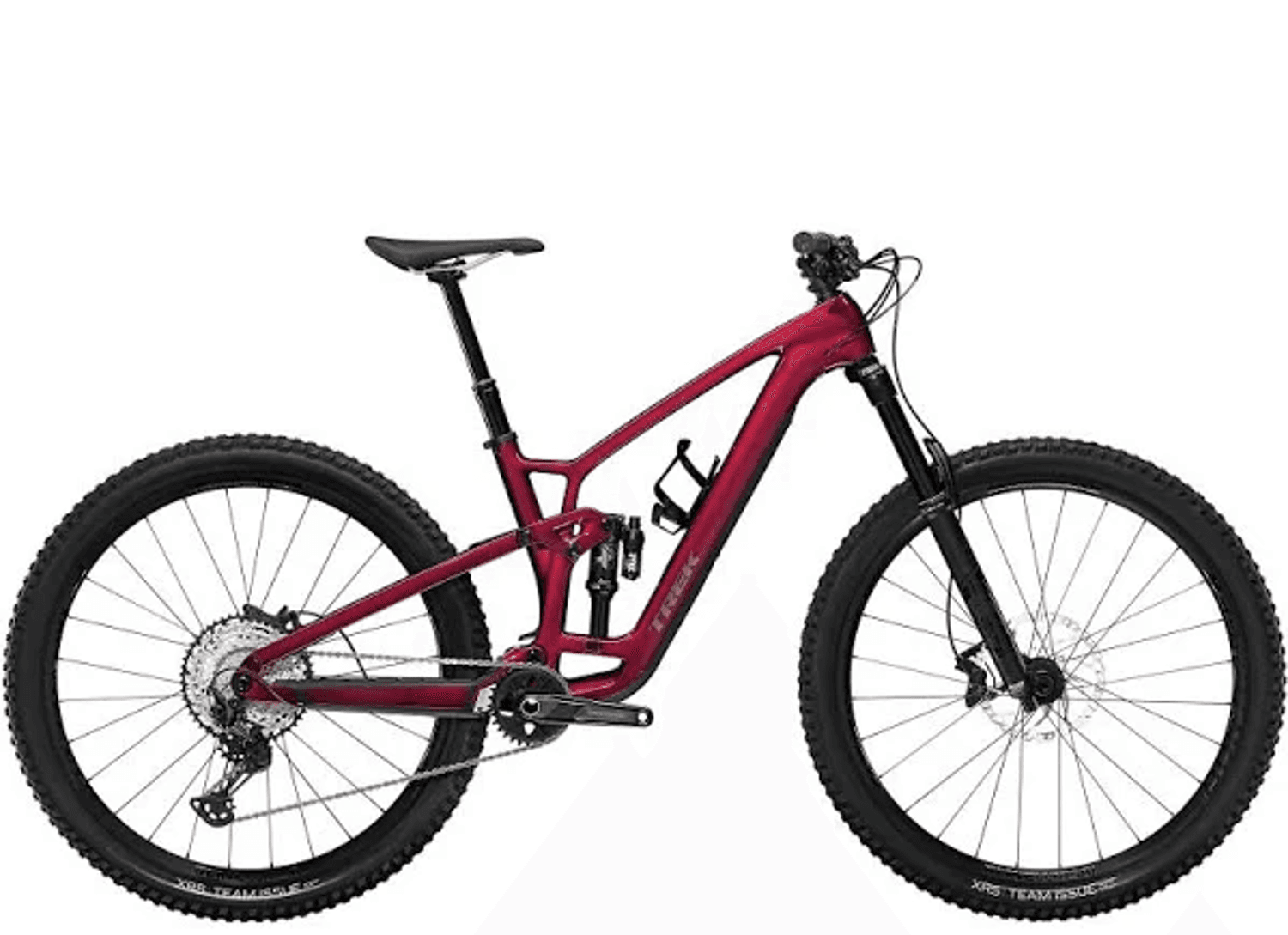

Trek Fuel Ex 9.7
OCLV Mountain Carbon, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routi…
$6,399$7,999
- Sizes
- Contact the shop for available sizes
- Colour
Available in store
It's right for you if... You're after the light weight and smooth ride of a carbon frame and want solid parts without the top-shelf price.
Complete build
Full specifications.
- Frame
- OCLV Mountain Carbon, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9 mm seat tube, ISCG 05, 55 mm chain line, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140 mm travel
- *Fork
- Size:S Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 140 mm travel
- Size:S , M , ML , L , XL Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 150 mm travel Shock
- Fox Performance Float X, 2-position damper, 185mm x 55mm
- Wheel front
- Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle
- *Wheel rear
- Size:S Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 54, 6-bolt, Boost148, 12mm thru axle
- Size:S , M , ML , L , XL Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle Hub front
- Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
- *Hub rear
- Size:S Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano MicroSpline freehub, Boost148, 12mm thru axle
- Size:S Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle Skewer rear
- Bontrager Switch thru-axle, removable lever
- Rim
- Bontrager Line Comp 30, Tubeless-Ready
- Rim strip
- Bontrager TLR
- Shifter
- Shimano SLX M7100, 12-speed
- Rear derailleur
- Shimano XT M8100, long cage
- Crank
- Shimano Deore M6120, 30T ring, 55 mm chainline, 170 mm length
- Bottom bracket
- Shimano SM-BB52, 73 mm, threaded external bearing
- Cassette
- Shimano SLX M7100, 10-51, 12-speed
- Chain
- Shimano SLX M7100, 12 speed
- Saddle
- Bontrager Arvada, hollow chromoly rails, 138 mm width
- *Seatpost
- Size:S TranzX JD-YSP39, 100 mm travel, internal routing, 34.9 mm
- Size:M , ML TranzX JD-YSP39, 150 mm travel, internal routing, 34.9 mm Size:L , XL TranzX JD-YSP39, 170 mm travel, internal routing, 34.9 mm *Handlebar
- Size:S Bontrager Line, alloy, 35 mm, 27.5 mm rise, 750 mm width
- Size:M , ML , L , XL Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width Grips
- Bontrager XR Trail Elite, nylon lock-on
- *Stem
- Size:S Bontrager Elite, 35 mm, 0-degree, 35 mm length
- Size:M , ML , L , XL Bontrager Elite, 35 mm, 0-degree, 45 mm length Head set
- Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible
- Brake
- Shimano 4-piston hydraulic disc, M6100 lever, M6120 calliper
- *Brake rotor
- Size:S , M , ML , L , XL Shimano RT66, 6-bolt, 180mm
- Size:M , ML , L , XL Shimano RT66, 6-bolt, 203 mm Accessories Bag
- Bontrager BITS Internal Frame Storage Bag
- Weight
- M – 14.76 kg/32.55 lb (with TLR sealant, no tubes)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
